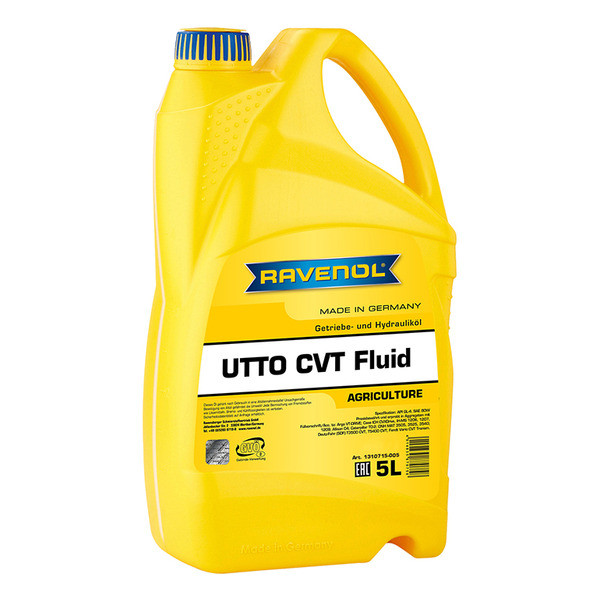

RAVENOL UTTO CVT Fluid is a combined transmission and hydraulic oil for agricultural, forestry and construction machinery. It is a special developed universal oil which can be used in combined hydraulic and transmission systems as well as in wet brakes in modern machines. High quality base oils and selected additives guarantee trouble-free operation of all aggregates at at any seasons.
RAVENOL UTTO CVT Fluid offers a wide range of applications as it meets a large number of specifications.
Application Note
RAVENOL UTTO CVT Fluid was specially developed for use in CVT transmissions and therefore offers optimized friction behavior and maximum wear protection.
RAVENOL UTTO CVT Fluid is suitable for wet brakes in powershift clutches and auxiliary drives.The product is not suitable as an engine oil.
Characteristics
- a very high stable viscosity index for year-round use
- a very low pour point
- a high oxidation stability
- protection against corrosion and wear
- a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load changecouplings and minor drives
- zincfree formulation
- very good water tolerance in the hydraulic and transmission circuit
Բնութագրերը
| Կարգավորում | Արժեք | Աուդիտ |
|---|---|---|
| TBN, mgKOH/g | 2.38 | ASTM D2896 |
| Sulphated Ash, %wt. | 0.3 | DIN 51575 |
| Անկայունություն NOACK, % M/M | 8 | ASTM D5800 |
| Brand | RAVENOL | |
| Suitable for | Argo VT-DRIVE, Case ICH CVXDrive, Fendt Vario CVT Transmissions, New Holland CVT | |
| Compliant products | Sauer Sunstrand/ Danfoss (hydrostatic trans fluid) | |
| Գույն | Light brown | տեսողական |
| Seq. I at 24 °C, ml/ml | 10/0 | ASTM D892 |
| Seq. II at 93,5 °C, ml/ml | 20/0 | ASTM D892 |
| Seq. III at 24 °C after 93,5 °C, ml/ml | 10/0 | ASTM D892 |
| Մածուցիկություն 100 °C-ում, mm²/s | 9.3 | DIN 51562-1 |
| Մածուցիկություն 40 °C-ում, mm²/s | 56.4 | DIN 51562-1 |
| Viscosity Index VI | 147 | DIN ISO 2909 |
| VKA Four Ball Test (Wear), mm | 0.5 | DIN EN ISO 20623 |
| Density at 20 °C, kg/m³ | 863.3 | EN ISO 12185 |
| Flashpoint, °C | 230 | DIN EN ISO 2592 |
| Pourpoint, °C | -42 | DIN ISO 3016 |
