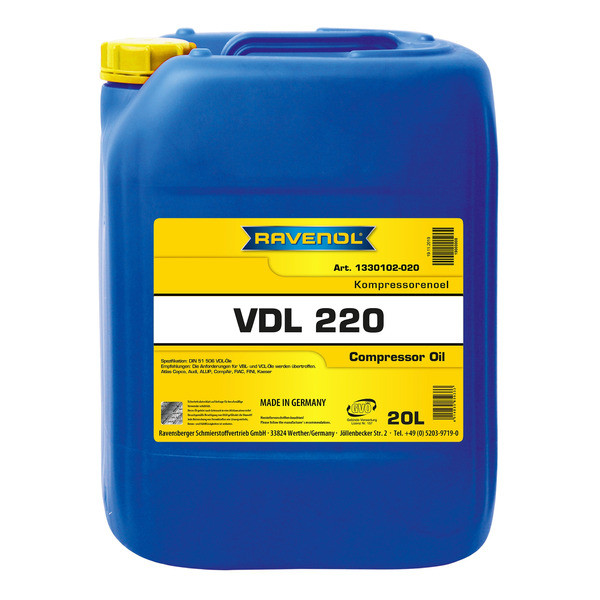

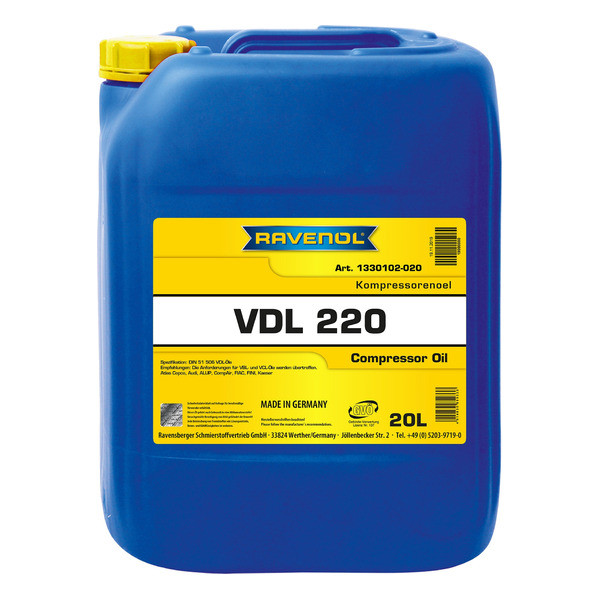

RAVENOL Kompressorenoel VDL 220 meets the high requirements of DIN 51 506. Specially designed with high quality, age-resistant base oils.
RAVENOL Kompressorenoel VDL 220 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 220 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 220 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 220 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Exceeds the requirements for VBL- and VCL-oils.
Characteristics
- Excellent aging resistance
- Best wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
Բնութագրերը
| Կարգավորում | Արժեք | Աուդիտ |
|---|---|---|
| Լայնությունը, mm | 580 | |
| Երկարություն, mm | 580 | |
| Բարձրություն, mm | 885 | |
| Քաշը, kg | 203.365 | |
| SAE | 220 | |
| Brand | RAVENOL | |
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW | |
| Density at 20 °C, kg/m³ | 893 | EN ISO 12185 |
| Գույն | tan | տեսողական |
| Մածուցիկություն 100 °C-ում, mm²/s | 18.8 | DIN 51562-1 |
| Մածուցիկություն 40 °C-ում, mm²/s | 226.5 | DIN 51562-1 |
| Viscosity Index VI | 93 | DIN ISO 2909 |
| Pourpoint, °C | -9 | DIN ISO 3016 |
| Flashpoint, °C | 276 | DIN EN ISO 2592 |
