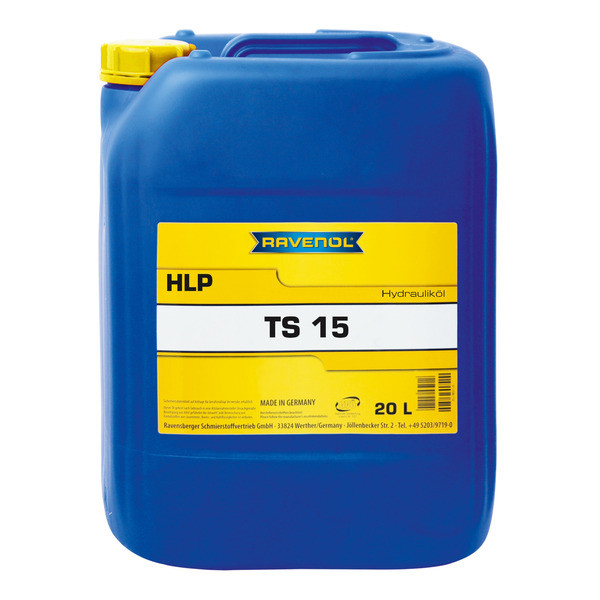

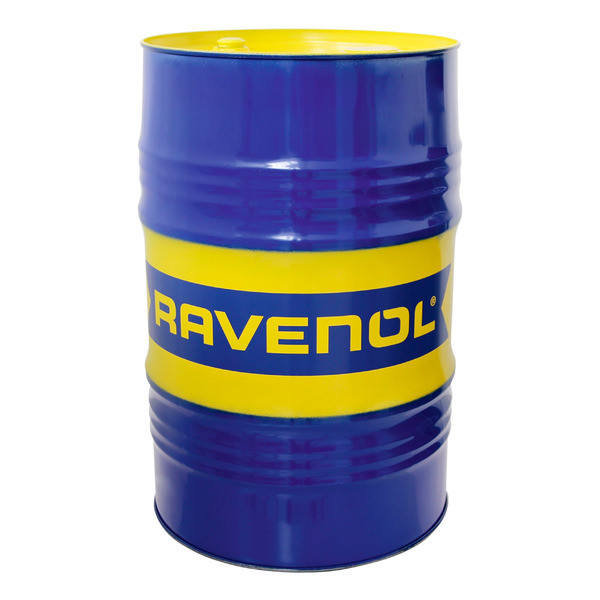

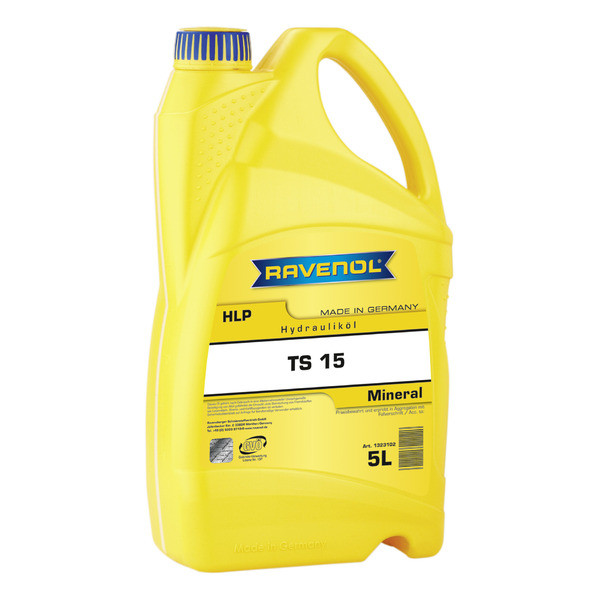

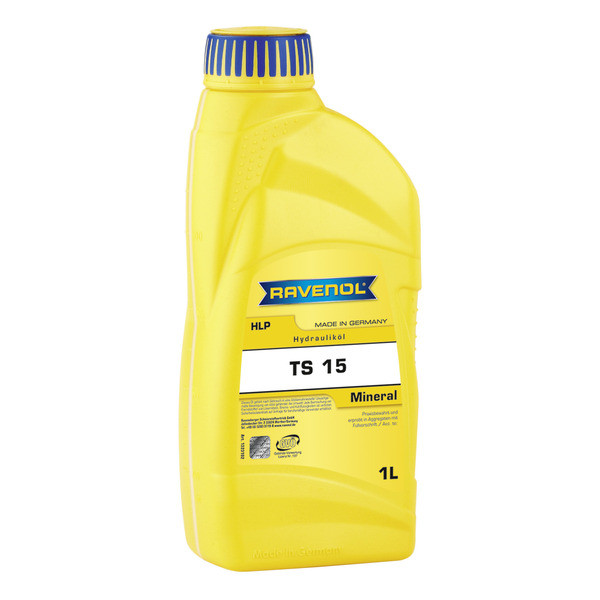

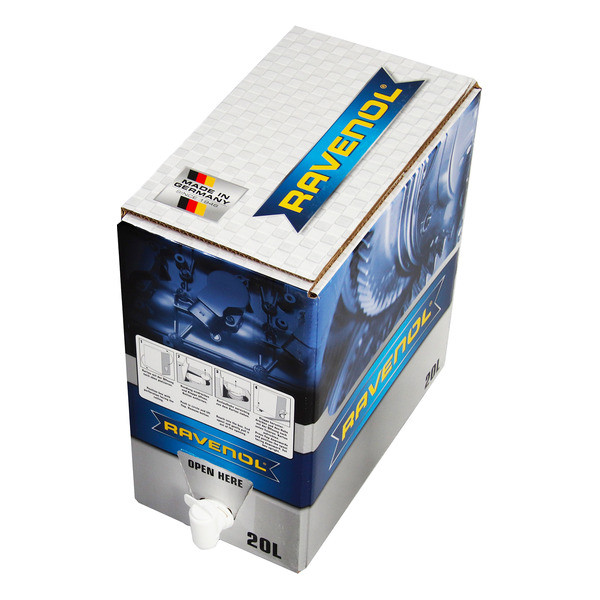

RAVENOL Hydraulikoel TS 15 (HLP) is optimal alloyed mineral hydraulic oil with a high performance level and a wide application area of the whole industry.
RAVENOL Hydraulikoel TS 15 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
RAVENOL Hydraulikoel TS 15 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.
Application Note
RAVENOL Hydraulikoel TS 15 (HLP) is for universally use in all hydraulic systems.
RAVENOL Hydraulikoel TS 15 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.
RAVENOL Hydraulikoel TS 15 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- a solid corrosion protection
- neutrality of sealing materials
Բնութագրերը
| Կարգավորում | Արժեք | Աուդիտ |
|---|---|---|
| Լայնությունը, mm | 580 | |
| Երկարություն, mm | 580 | |
| Բարձրություն, mm | 885 | |
| Քաշը, kg | 198.789 | |
| SAE | 15 | |
| Brand | RAVENOL | |
| ASTM | D6158 | |
| Suitable for | Metso | |
| Density at 20 °C, kg/m³ | 837 | EN ISO 12185 |
| Գույն | light yellow | տեսողական |
| Մածուցիկություն 100 °C-ում, mm²/s | 3.5 | DIN 51562-1 |
| Մածուցիկություն 40 °C-ում, mm²/s | 15 | DIN 51562-1 |
| Viscosity Index VI | 113 | DIN ISO 2909 |
| Pourpoint, °C | -51 | DIN ISO 3016 |
| Flashpoint, °C | 186 | DIN EN ISO 2592 |
